Zirconia Full Ceramic Bearing 6200 6201 6202 6203 6204 6205 6206 6207 6208 Glass Steel Si3n4 Zro2 Ceramic Balls PTFE Peek Plastic Bearing

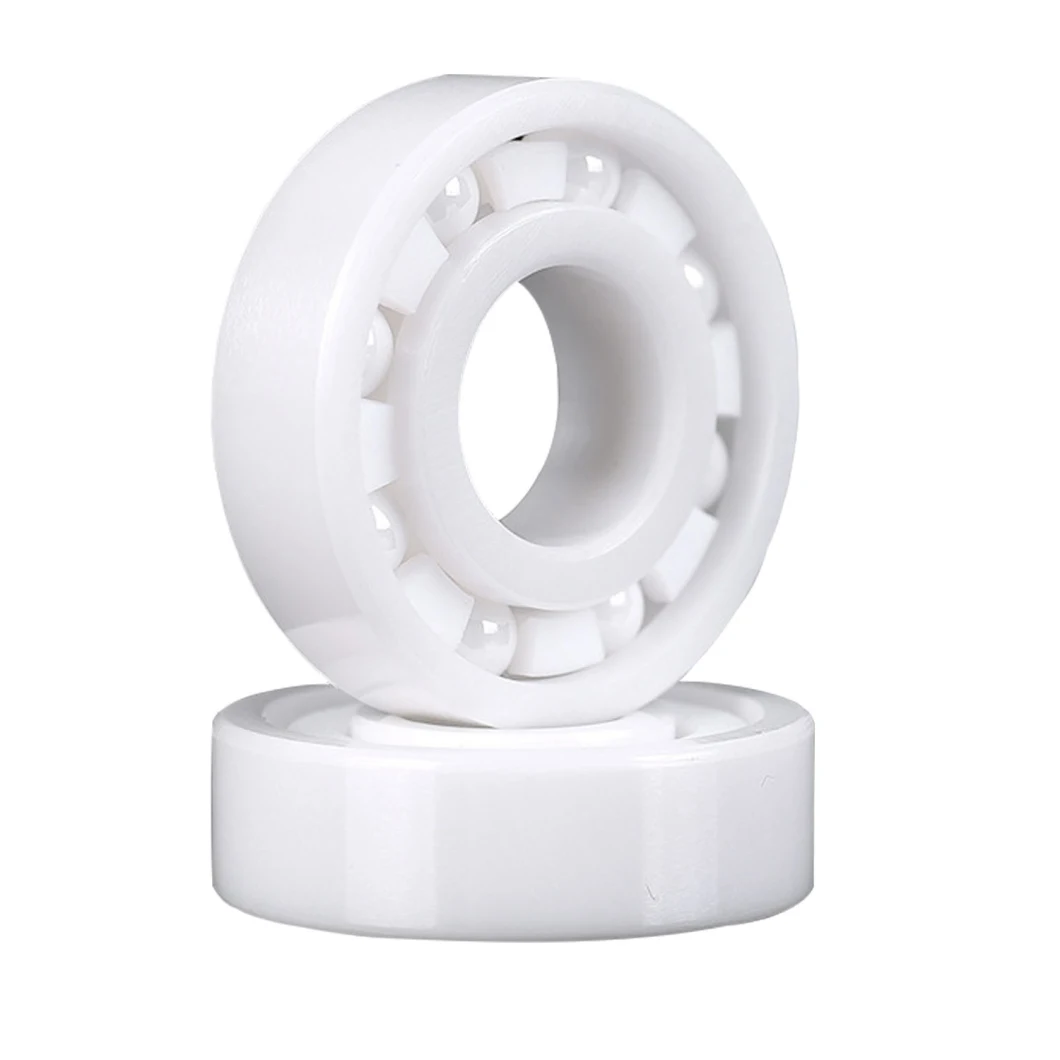

The white ZrO2 full ceramic ball bearings in the table below are available with cages (or retainers) made from PEEK, PTFE. Bearings with bore sizes from 8mm upwards can also be fitted with 316 stainless steel cages. In addition, we keep stock of full complement silicon nitride bearings. These have no cage and extra balls. For full complement type, the load ratings are approximately 20% higher but the maximum speed is up to 70% lower. As for bearings with cages, PEEK cages are generally the option available from stock due to the strength and durability of PEEK. If an alternative cage material is required to cope with particular chemicals or temperature extremes beyond the range of PEEK, these can be produced to order. Si3N4 bearings are not magnetic and they are highly corrosion resistant to most chemicals. They are also electrically insulating. Like ZrO2 bearings, they are also extremely water resistant which is why they are often used in marine applications. They can be fully and permanently submerged without the material being affected. Due to their greater brittleness, Si3N4 bearings have slightly lower load ratings than ZrO2 bearings but will still cope with much higher loads and speeds than 316 marine grade bearings

1) 6000 series:	604.605.606.607.608.609.6000.6001.6002.6003.6004.6005.6006.6007.6008.6009.6010.6011.6012
2) 6200 series:	624.625.626.627.628.629.6200.6201.6202.6203.6204.6205.6206.6207.6208.6209.6210.6211.6212
3) 6300 series:	634.635.636.637.638.639.6300.6301.6302.6303.6304.6305.6306.6307.6308.6309.6310.6311.6312
4) 6400 series:	6403.6404.6405.6406.6407.6408.6409.6410.6411.6412.6413.6414.6415.6416.6417.6418.6419.6420
5) 6700 series:	673.674.675.676.677.678.679.6700.6701.6702.6703.6704.6705
6) 6800 series:	685.686.687.688.689.6800.6801.6802.6803.6804.6805.6806.6807.6808.6809.6810.6811.6812
7) 6900 series:	695.696.697.698.699.6900.6901.6902.6903.6904.6905.6906.6907.6908.6909.6910.6911.6912
8)16000 series:	16001.16002.16003.16004.16005.16006.16007.16008.16009.16010.16011.16012.16013.16014.16015
