Wear Resistance Injection Molding Peek Balls

shenzhen jiajingyuan electronic technology co.,ltd
Contact Now
    Buy cheap Wear Resistance Injection Molding Peek Balls from wholesalers

    Buy cheap Wear Resistance Injection Molding Peek Balls from wholesalers
    • Buy cheap Wear Resistance Injection Molding Peek Balls from wholesalers
    • Buy cheap Wear Resistance Injection Molding Peek Balls from wholesalers

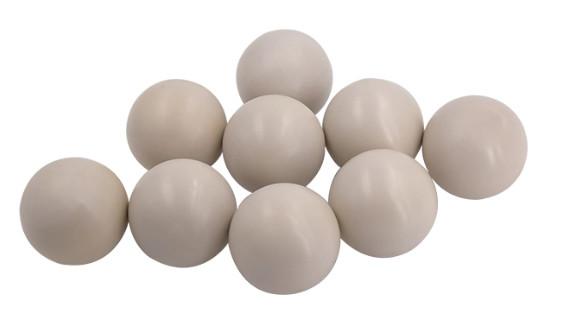

    Wear Resistance Injection Molding Peek Balls

    Ask Lasest Price
    Brand Name : oem odm
    Price : Negotiated
    Payment Terms : T/T
    Supply Ability : 10000PCS
    Delivery Time : 20 days after 2D 3D confirmed
    • Product Details
    • Company Profile

    Wear Resistance Injection Molding Peek Balls

    Wear Resistance Injection Molding Peek Balls


    Basic Info.

    Model NO.
    PEEK
    Material
    Peek
    Color
    Black, Nature
    Continuous Use Temperature
    260
    Diameter
    3mm, 8mm, 9mm or Customized
    Plastic Modling Type
    Injection
    Trademark
    Shenzhen
    Transport Package
    Standard Export Package
    Origin
    Shenzhen Guangdong

    Product Description

    1. Product Name: PEEK balls
    2. Material: PEEK
    3. Diameter: 3mm, 8mm, 9mm or others
    4. Color: Natural, black
    5. Manufacturing technique: Injection Molding
    6. Certification: ISO9001, SGS, FDA, ROHS
    7. Samples: Available


    PEEK Material Performance

    PEEK is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures. PEEK is used to fabricate items used in demanding applications, including bearings, piston parts, pumps, HPLC columns, compressor plate valves, and cable insulation. It is one of the few plastics compatible with ultra-high vacuum applications.


    PEEK5600G Series Data Sheet
    ItemTest StandardUnitPEEK5600GPEEK5600GF30PEEK5600CF30PEEK5600LF30
    ColorNatural or BlackNatural or BlackBlackBlack
    DensityISO 1183g/cm31.3±0.011.5±0.011.4±0.011.43±0.01
    Water Abs. (25ºC.24Hrs)ISO 62%0.50.110.060.06


    Mould shrinking percentage
    3mm,170ºC, Flow direction%1.20.40.10.3
    Perpendicular to flow direction%1.50.80.50.5
    Melting pointDSCºC343343343343
    Distortion temperatureASTM D648ºC163315315293
    Continuous using temperatureUL 74685ºC260260260260
    Coefficient of thermal expansionASTM D69610-5ºC4.72.21.52.2
    Tensile strength(23ºC)ISO527-2/1B/50Mpa100155220134
    Tensile elongation(23ºC)ISO527-2/1B/50%3421.82.2
    Bending strength(23ºC)ISO 178Mpa163212298186
    Compressive strength(23ºC)ASTM D695Mpa118215240150
    Lzod impact strength ( no gap)ISO 180/UKJm-2No crack514632
    Rockwell hardnessASTM D78599103107102
    Flammable levelUL 94V-0 @mm1.51.51.50.75
    Dielectric strengthIEC 248KV/mm1.81.9
    Dielectric constantIEC 2503.23.3
    Surface resistivityΩ1015Ω1015Ω3×106Ω5×106Ω
    Friction coefficientμ0.30-0.380.38-0.460.280.18
    If need other parameter, please contact us!
    PEEK5600G: 100%PEEK
    PEEK5600GF30: PEEK+30%Glass fiber

    PEEK5600CF30: PEEK+30%Carbon fiber

    PEEK5600LF30: PEEK+(10% Carbon fiber+10% Graphite+10% PTFE)

    FAQ


    Q: How long is your delivery time?

    A: We evaluate the difficulty and quantity of the product and then give it to the customer.

    Q: Do you accept customized order ?

    A: Sure, satisfying your need is our goal, just sent inquiry details and we will try our best to assist you.
